Shopping List:
Headboard/Footboard
1 – Sheet 3/4" Plywood, MDF
2 – 1x3 @ 8 feet long
2 – 2x3 @ 8 feet long
1 – 1x2 @ 8 feet long
4 – small moulding pieces 8 feet long
3/4” finish nails
1 1/4” pocket hole screws
Storage Bases
2 – Sheets ¾” plywood or MDF cut into strips 15 3/4" wide, referred to as 1x16 boards throughout this plan
2 – sheets ¼” plywood or other backerboard
4 – 2x4 @ 8 feet long
2 – 2x2 @ 8 feet long
3– 1x3 @ 8 feet long (for the slats – try and burn up small scraps here)
7 – 1x6 @ 8 feet long OR 1 sheet ¾” plywood cut into strips 5 1/2" wide, used as 1x6s for drawers. You could even use 5/8” thick material
4 – 1x8 @ 6 feet long
Optional drawer moulding
24 (or 12) – Drawer Knobs or handles
12 – 14” long drawer slides, the white euro style bottom corner mount ones will work best
1 1/4” and 2 1/2" pocket hole screws
1 1/4” finish nails
CUT LIST
Headboard/Footboard
1– 3/4" plywood or MDF @ 60” x 25" (headboard)
1 - 3/4" plywood or MDF @ 60 x 23" (footboard)
2 – 1x3 @ 60”
2 – 1x2 @ 60"
2 – 2x3 @ 47 1/2”
2 – 2x3 @ 27 1/2"
2 – 1x3 @ 67”
8– Moulding pieces ... i will have to measure these
8 - Moulding pieces (again i need to measure these (long point to long point, both ends cut at 45 degrees off square, not parallel to each other)
Storage Bases
4 – 1x16 @ 80”
8 – 1x16 @ 14 7/8”
2 – ¼” plywood @ 80” x 16 ¼”
4 – 2x4 @ 75"
4 – 2x4 @ 10”
2 – 2x2 @ 80"
14 – 1x3 or 1x2 scraps @ 7”
DRAWERS ( I need to double check the drawers
24 – 1x6 @ 14”
24 – 1x6 @ 21 ½” (I think I added a smidge to the length of the drawers Bu need to measure... I think I used 23 3/8")
12 – 1x8 @ 24 5/8” (Drawer Faces) measure and build to your exact drawers though
12 - ¼” plywood @ 23” x 14” (Drawer Bottoms). Again I think I added an inch or so... will need to measure to confirm)
This was the BIG summer project! The plan when moving my son to his own room (which happened to be the bonus room) was to eliminate the need for a dresser. Partly due to space and low ceilings. After much planning we decided on the Fillman storage Bed that Ana-White had posted. It was for a twin size bed. I calculated and measured and came up with a queen size based on those plans. I will update with my cut list and sizes if anyone is interested. For now here are the pictures! I did add 2 wooden knobs to each drawer (stained to match) Need to get an updated picture!
 |
| THE BED! 12 Drawers queen size... I can't believe I built this! |
 |

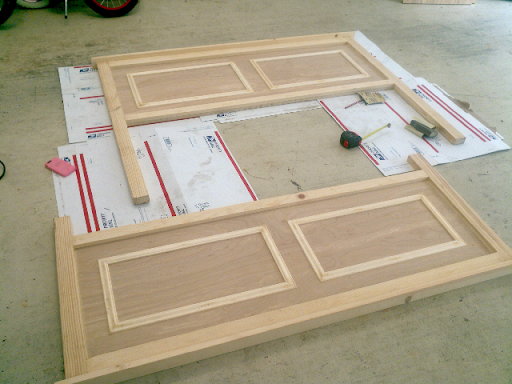

| Headboard and Footboard trimmed out |
